漳州科虹电子有限公司

ZK-LS六面双工位真空整形机特点：

1、计量精度高，性能稳定，操作简便快捷。

2、自适应用软件，具有控制参数自动设定，落差自动修正，超差报警，故障自动诊断等功能。

3、先进的机电一体化设计，自动定量包装，自动完成夹包、真空、整形、封口和送包 过程。

4、定量包装后，直接进行真空处理，节省操作环节，提高工作效率。

5、整形效果好、封口质量可靠、真空成功率高。

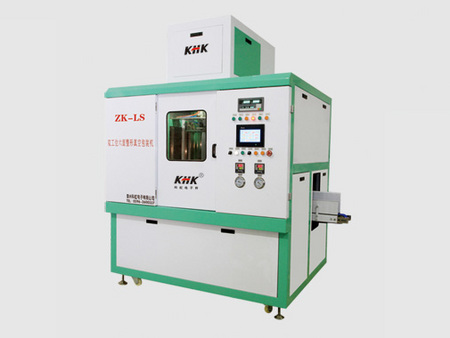

ZK-LS Brick Shaping Double Position Vacuum Packing Machine

ZK-LS Features

New brick shaping double position vacuum packing machine, auto weighing, filling, vacuum shaping,

sealing and conveying can be completed.

New design for easy opening of bag bottom, shaping mould can be made according to different need.

Imported touch screen man-machine interface, easy operation and the information is displayed more plentifully.

Using high speed weighing instrument and Germany Siemens PLC programmable, stable performance

and fast speed.

Allocation of imported pneumatic components and slide, imported motor and vacuum pump, stable and

reliable performance. Contact part with material is stainless steel.

应用范围：

大米、饲料、食品、化工等行业对已经完全密封包装的物料袋进行六面整形、抽真空处理，

达到美观、保鲜、防变质效果，且便于运输。

RANGE OF APPLICATION :

It is suitable for six-sides vacuum shaping of rice, fodder, food, chemical and other industries.

It can achieve the effects of beautiful, fresh and preventing deterioration and easy to transport.

基本参数：

型号规格：ZK-LS

包装范围：0.5-2.5KG

包装速度：≥450(包/H)

电源功耗：380V 50Hz 2.5KW

气源耗气：0.4-0.6Mpa

压缩空气：1m³/h

外形尺寸：长1650×宽1300×高2250(mm）
